Sync Photoshop’s Color Settings With All Creative Cloud Apps

Opening The Color Settings Dialog Box

Let’s quickly recap the color settings we changed in the previous tutorial. To access Photoshop’s color settings, go up to the Edit menu at the the top of the screen and choose Color Settings:

Opening the Photoshop Color Settings from under the Edit menu.

Going to Edit > Color Settings.

Choosing Your Custom Preset

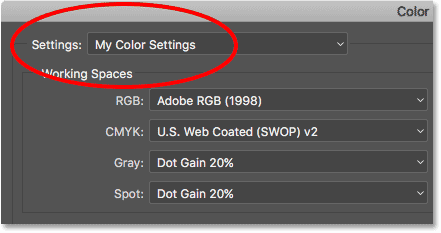

The Color Settings dialog box will open. If you followed along with the previous tutorial, your Settings option at the top should already be set to your custom preset. In my case, I named my preset “My Color Settings”:

Photoshop is using the custom color settings preset we created.

Your custom color settings preset should already be selected.

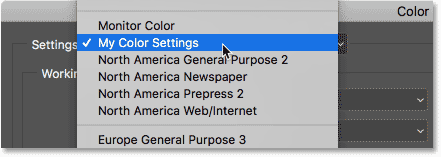

If, for some reason, your custom preset is not already selected, click on the name of the current preset. Then choose your custom preset from the list:

Choosing the new color settings I previously saved.

Selecting “My Color Settings” from the list of presets.

The RGB Working Space

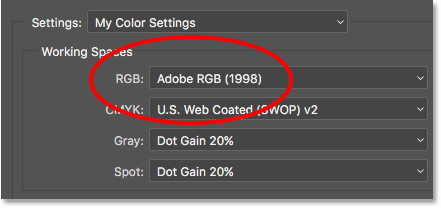

With the custom preset active, we see that our RGB working space has been changed from sRGB to Adobe RGB:

The Color Settings dialog box showing Adobe RGB as the RGB working space.

Our custom preset uses Adobe RGB as the RGB working space.

The Color Management Policies

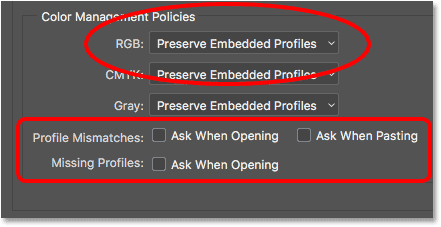

And in the Color Management Policies section, we’ve made sure that the RGB option (along with CMYK and Gray) is set to Preserve Embedded Profiles. Also, the Profile Mismatches and Missing Profiles checkboxes are all unchecked. We learned about these options in the previous tutorial:

The Color Management Policies options.

The Color Management Policies options.

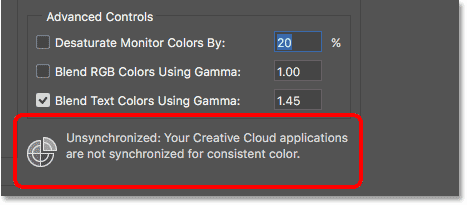

Notice that the Color Settings dialog box is telling us that, at the moment, our custom settings only apply to Photoshop. They have not yet been synchronized with our other Creative Cloud or Creative Suite apps:

Your Creatuve Cloud applications are not synchronized for consistent color.

The custom setting has not yet been synchronized with the other apps.

Closing The Color Settings Dialog Box

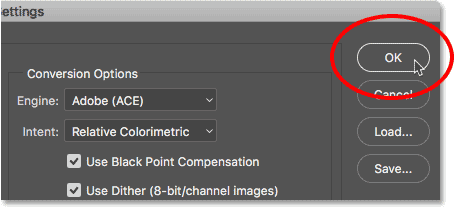

To close Photoshop’s Color Settings dialog box, click OK:

Closing the Color Settings dialog box in Photoshop.

Clicking OK to close the Color Settings dialog box.

How To Sync Your Color Settings

Step 1: Open Adobe Bridge

Let’s synch our custom Photoshop color settings with the rest of the Creative Cloud or Creative Suite. To do that, we’ll need Adobe Bridge. To open Adobe Bridge from within Photoshop, go up to the File menu at the top of the screen and choose Browse in Bridge:

Opening Adobe Bridge from Photoshop.

In Photoshop, go to File > Browse in Bridge.

Step 2: Open The Color Settings Dialog Box

Then in Bridge CC, go up to the Edit menu and choose Color Settings. In Bridge CS6, go up to the Edit menu and choose Creative Suite Color Settings. This opens the Color Settings dialog box:

Opening the Color Settings in Adobe Bridge.

In Bridge, go to Edit > Color Settings (CC) or Creative Suite Color Settings (CS6).

Step 3: Choose Your Custom Color Settings Preset

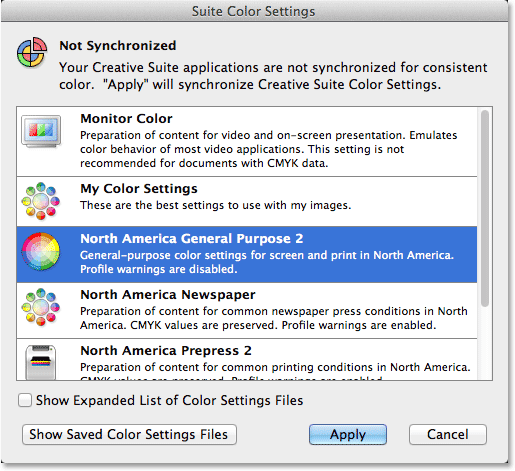

Notice that the Color Settings dialog box in Bridge looks different from the one we saw back in Photoshop. Rather than choosing individual color settings, here we choose a color settings preset. The preset will then be synchronized across every app in the Creative Cloud or Creative Suite. By default, the North America General Purpose 2 preset is selected. This is the same preset Photoshop was using before we changed it. At the top of the dialog box, we see another message telling us that our color settings are not yet synchronized:

The Color Settings dialog box in Adobe Bridge.

The Color Settings dialog box in Adobe Bridge.

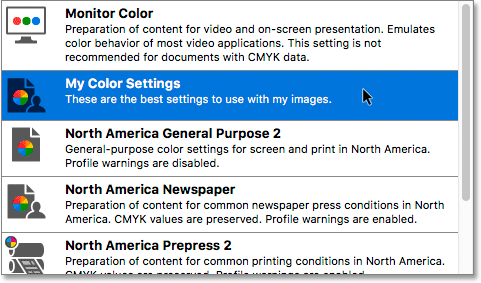

Choose your custom preset (the one you created in Photoshop) from the list. I’ll choose the “My Color Settings” preset. Notice that the description we added for the preset back in Photoshop appears below the preset’s name:

Selecting the custom preset created in Photoshop.

Selecting my custom “My Color Settings” preset.

Step 4: Click “Apply”

To sync your preset across every app in the Creative Cloud or Creative Suite, click Apply at the bottom of the dialog box:

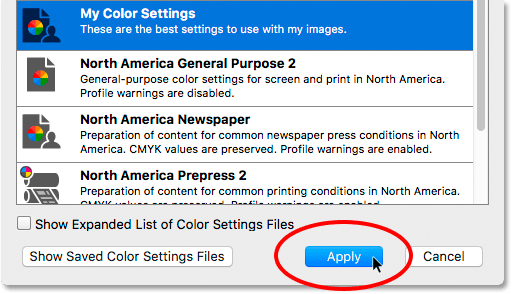

Clicking the Apply button to sync the color settings.

Clicking “Apply” to sync the color settings.

Bridge closes the Color Settings dialog box after you click the “Apply” button. To see what has actually happened, let’s quickly re-open it. Go up to the Edit menu and choose Color Settings (CC) or Creative Suite Color Settings (CS6). This time, the Color Settings dialog box opens with our custom preset already selected. And, the message at the top of the dialog box now tells us that we’ve successfully synced the preset will every app in the Creative Cloud / Creative Suite:

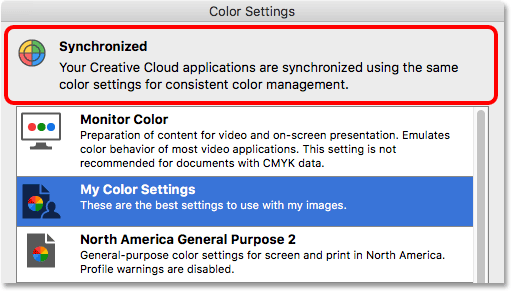

My custom color settings have been synchronized with the entire Creative Suite.

Every app in the Creative Cloud / Creative Suite is now using your custom color settings.
