How to Create an Isometric Grid in Less than 2 Minutes!

This Quick Tip will show you – in just a few easy steps – how to make an useful isometric grid. You will learn how to use the Rectangular Grid Tool with the “SSR technique”, and in less than two minutes you’ll be ready to draw your isometric designs.

Are you a beginner to isometric designs? Then check out our awesome Isometric Generators available on Envato Market for fast effects!

Open a new document. The dimensions will depend on what you will create on the grid we’ll make, and also the color mode. We’ll start now by selecting the Rectangular Grid Tool.

Create the Grid

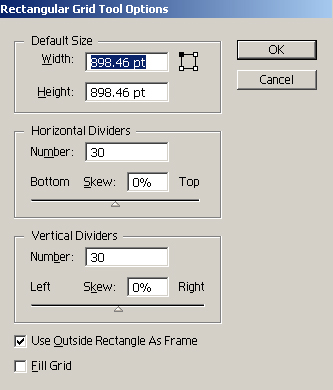

Set the parameters of Rectangle Grid Tool. Press Enter and set the values for Number under both Vertical Dividers and Horizontal Dividers to around 30. This value depends on the proportions of your project, so chose a number that suits your needs.

Create the Grid

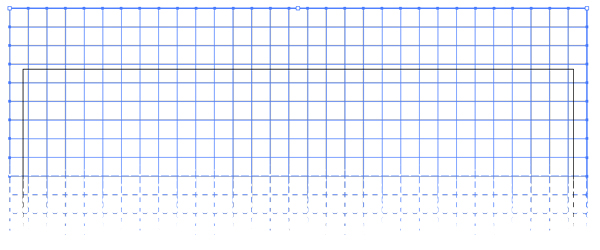

Now, you have two alternatives. You can specify the exact values for the Widthand Height in the previous step (which I don’t recommend). In this case you must set the same value for both Width and Height to obtain a square grid. Or you can ignore those values and just drag with your mouse, holding Shift, to make one large square, a bit larger than your document (you will see later why).

What we are going to do next is called “the SSR method”. This is a method to make 3D isometric graphics from 2D. For our grid we will use this technique for the top plane.

Create the Grid

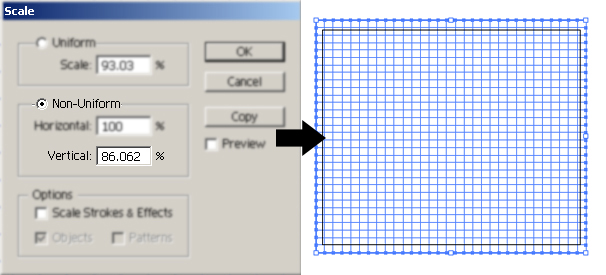

Select the grid and go to Object > Transform > Scale, check the Non-Uniformand set the Vertical at 86,602%.

Scale the Grid

Edit:The above graphic says “86.062”, but the correct setting is 86.602.

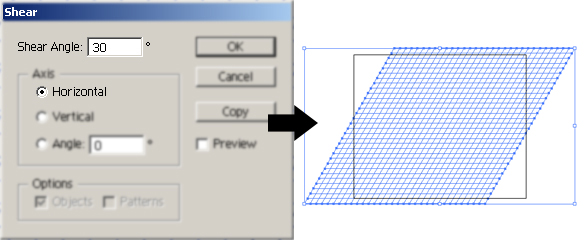

Keep the grid selected from now on. Go to Object > Transform > Shear and set the Angle at 30 degrees.

 Shear the Grid

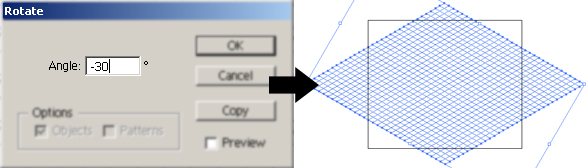

Finally we have to rotate the grid. Object > Transform > Rotate and set an Angle of -30 degrees.

Rotate the Grid

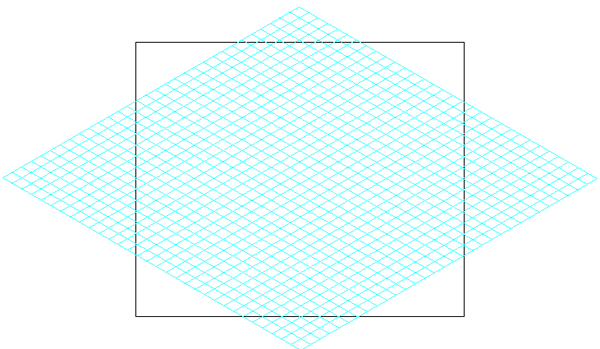

Now the lines are set, all you need to do is to make Guides out of them. Be sure you have the grid selected and go to View > Guides > Make Guides (Control + 5).

Rotate the Grid

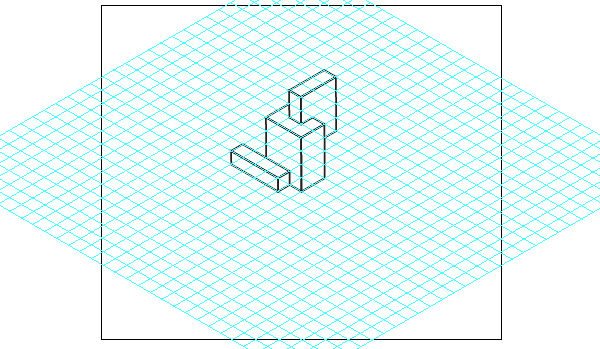

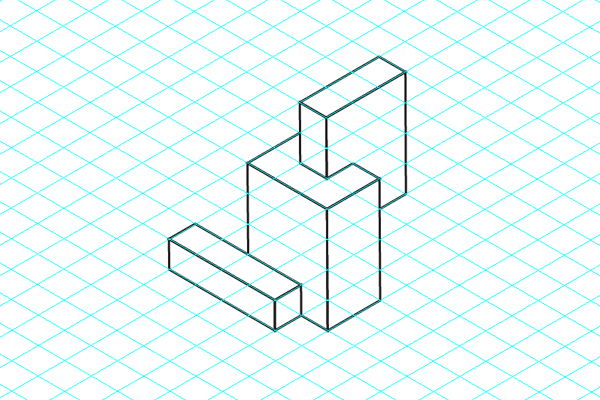

You now have a playground for your ideas, and this should take only two or three minutes. By taking the time out to use this technique you can make some great looking isometric illustrations and know that you’re using the right perspective. Have fun!
